The Original CH-7 Angel Helicopter By Augusto Cicare

Article Date: 1989

CH-7 ANGEL

Project: Augusto Cicare

Cabin and Blades: Designed and Produced by Marcello Gandini

Helicopter Production: Elisport

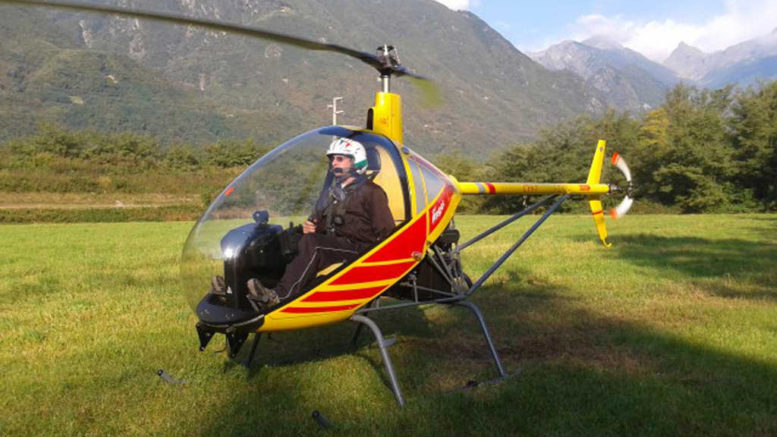

CH-7 Angel Helicopter kit

CH-7 ANGEL HELICOPTER PERFORMANCE SPECIFICATIONS

TYPE: Amateur built helicopter, ONE-SEAT

ENGINE: Rotax 532cc, 65 Horsepower, two cycle, two cylinder, dual ignitions, liquid cooled

UTILIZATION: Transport, agricultural activity, sport aviation

STRUCTURE: Steel trestle weld and aluminium tubes bolted Cabin in composite materials with wide view canopy

MAIN ROTOR: Two composite blades, semi rigid rotor system

TAIL ROTOR: Two aluminium blades

TRANSMISSION SYSTEM: Cardanic gear and transmission box oversize for higher security

CONTROL SYSTEM: “PULL-PUSH” without cables

INSTRUMENT PANEL: Air-speed indicator, altimeter, vertical speed indicator rotor/engine revolution indicator, water temperature, dual EGT, carburetor temperature, hour counter

CH-7 Angel Helicopter Specifications METRIC IMPERIAL
LENGTH 7.15 m 23 ft
HEIGHT 2.03 m 31 in
WIDTH 1.60 m 62 in
MAIN ROTOR DIAMETER 6.0 m 19 ft
TAIL ROTOR DIAMETER 1.03 m 40 in
EMPTY WEIGHT 205 kg 451 lb
MAXIMUM SPEED 140 km/h 86 mph
CRUISE SPEED 110 km/h 68 mph
VERTICAL SPEED 7 mt/s 2000 fpm
RANGE MAXIMUM 3hr /330 km 3hr /205 m
FUEL CAPACITY 40 L 10 gal
HOVER IN GROUND EFFECT 2100 m 7000 ft
HOVER OUT OF GROUND EFFECT 1500 m 5000 ft
SERVICE CEILING 3500 m 11000 ft
MAINTENANCE Every 300 hrs
