Design Talk With Don Hillberg Helicopter Designer

Hello Adam, The RotorMouse’s blades are wood from a QH50 Gyrodyne Remote Piloted Helicopter. The span for the blade is 109″ with a taper in camber and chord.

helicopter rotorblade root span tip

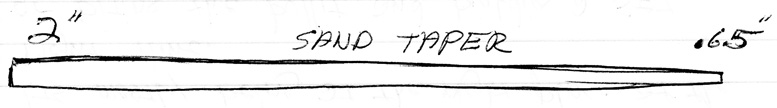

8.5° twist with chord at root 12″ – chord at the tip is 7.5″, camber at root is 2″ tapering to the tip – 0.65″ camber.

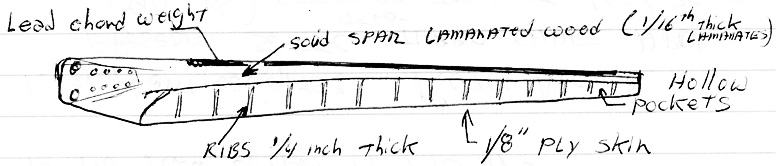

wooden helicopter rotor blades

symetrical rotorblade

Weight is 37lbs each and from an accident I had at Sun & Fun, autorotation is great with lots of inertia, allowing a slower decent rate.

I know what the insides look like as I’ve wrecked two sets. The production of wood blades, metal blades, or composite blades are every where (1990’s) – lots of kit helicopter blades also.

To build them is relatively easy and the secret to designing a helicopter is not so much in the blades, but the aircraft’s empty weight to horsepower – turbine power is what works.

RotorMouse Helicopter

AiResearch 36-55-C turboshaft APU (90lbs) plus gearbox engine…etc. 75lbs with the total weight: 160/170lbs. 145 horsepower – full rated 100% TOT/RPM with 9.9 gallons per hour fuel usage. Full gross weight is only 993lbs!

Running 6.8lbs per horsepower with the RotorMouse is why the climb rate is so high. The Rotorway Exec is about 11.3lbs per horsepower – average for a helicopter of its power output is 150hp.

Rotorway Helicopter

RW 162 engine and drive train – 4 cylinder aircooled engine: 375lbs plus!

If you like the blades a furniture manufacturer can build a set using high quality marine plywood using 1/16th inch laminates with lead bar stock leading edge balance weight. Rib area replaced with balsa wedges and finished with a fiberglass skin (fine weave – single ply cloth).

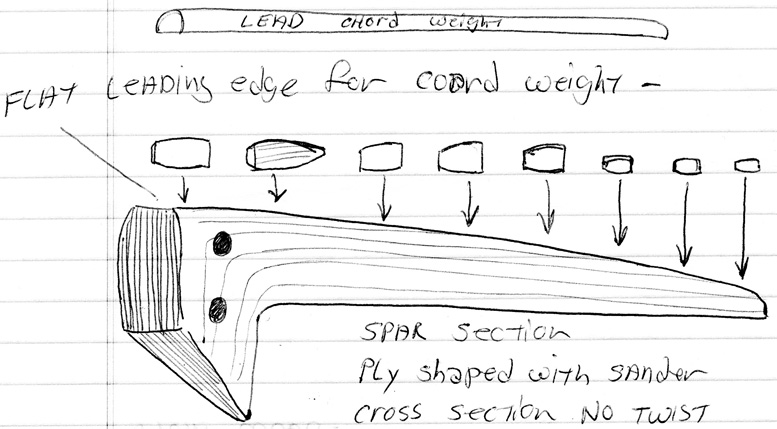

helicopter rotorblade construction

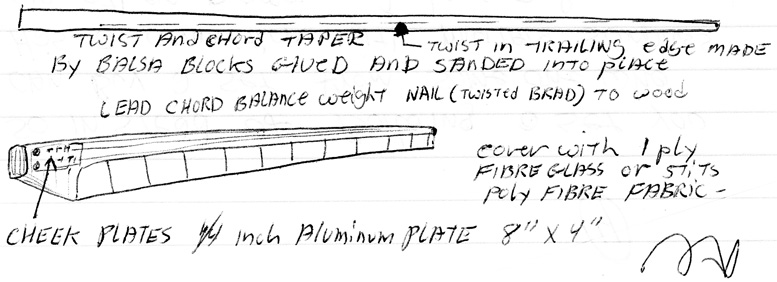

Glue balsa wedges to the trailing edge of the spar, base of wedge is angles to “twist” airfoil to angle required using plumb line (or laser level).

how to make helicopter rotorblades

As an alternative, instead of building your own rotorblades you can buy a set of these blades from someone who has a connection with military surplus or other people in military supply and maintenance.

I have a few connections – the cost is about $1,500.00 for a set of QH50 blades in wood (1990’s prices & availability) – or slightly more for the newer fiberglass construction QH50 helicopter blades.

diy helicopter rotorblades

It’s mostly being in the right place at the right time to pick up a set of these blades, or biting the bullet and building a set from wood…

Read more here.


HILLBERG HELICOPTERS


ROTORMOUSE EH 1-01 PROTOTYPE HELICOPTER

  • ROTORMOUSE EH 1-01 PROTOTYPE HELICOPTER

  • ENGINE SPEC. 145 HP TURBO SHAFT APU FROM APACHE AH 64A

  • 8216 RPM @ PTO 58747 RPM @ HIGH SPEED SPOOL

  • FUEL BURN 9.9 GPH @ 100% AUTO-GOVERNED ±2%

  • ENGINE WEIGHT 95 LBS COMPLETE

  • ALL ALUMINUM CONSTRUCTION – SKIN, BULKHEADS & KEEL

  • STAINLESS FIRE WALL & ENGINE DECK

  • CRASH RESISTANT FUEL CELL HOLDING 32.9 GAL. USEABLE

  • R-22 TRANSMISSION & SWASHPLATE, T/R GEARBOX & SPRAG

  • BLADES OFF QH-50 GYRODYNE DRONE HELICOPTER

  • STICK GRIP FROM F-86

  • BASIC CONSTRUCTION RIVETS & BOLTS PRO-SEAL

  • FULL SERVICE ELECTRICAL SYSTEM


ROTORMOUSE SPECIFICATIONS


ROTORMOUSE DIMENSIONS

  • 231″ LONG

  • 2′ 4″ WIDE

  • 8′ 9″ TALL SINGLE PILOT

  • 640 LBS EMPTY

  • 217 LBS FUEL

  • 140 LBS PILOT

  • BASIC OPERATING WEIGHT 997 LBS


ROTORMOUSE FLIGHT DATA

  • RATE OF CLIMB BASIC WEIGHT @ 60 MPH 4700 FPM

  • RATE OF CLIMB COLLECTIVE ONLY 2700 FPM

  • SIDEWARD FLIGHT 45 MPH

  • CRUISE FLIGHT 130 MPH (2″ CYCLIC & 2″ COLLECTIVE REMAINING BEFORE STOPS)

  • AVERAGE TURBINE TEMP 620°C (735°c LIMIT)

  • VNE UNKNOWN, STILL TESTING

  • ROTOR SPEED 510 RPM ±20 RPM

  • ENGINE MAX ALT 30,000 FT MAX START 20,000 FT

  • 3 HOURS RANGE (20 MIN RESERVE) @ 130 MPH=390 MILES

  • MAX GROSS 1370 LBS (DUE TO R-22 TXSM)

  • CRASH TESTED (OOPS) NO HARM TO THE PILOT

  • FUEL SYSTEM $850 BLADES $300

  • DRIVE TRAIN (SOURCED FROM 3 CRASHED R-22 HELICOPTERS)

  • (WIRES & OTHER TRASH)


ROTORMOUSE COSTS

  • ENGINE $800

  • AIRFRAME $600

  • Misc COSTS, $5450

  • TOTAL ± $8000


OCT 1994 PRICE LIST

  • NEW EH 1-01 ROTORMOUSE VIDEO INFO PACK $30

  • EH 1-01 PROTOTYPE BASIC BLUE PRINT $50

  • EH 1-01 A ROTORMOUSE PRINT $350

  • EH 1-02 ROTORMOUSE BLUE PRINT $350

  • EH 1-01 A ROTORMOUSE KIT BASIC/ADVANCED $25,000/$57,000

  • EH 1-02 ROTORMOUSE KIT BASIC/ADVANCED $37,000/$62,000


EXEC 90 CONVERSION TO TURBINE POWER

  • EXEC CONVERSION INFO PACK

  • CONVERSION KIT BASIC… (ENGINE, GEARBOXES, CLUTCHES, ETC.) $16,078

  • CALL FOR ITEM COSTS BREAK DOWN

  • SOLAR T62 TURBINE ENGINES (ABOUT $8,000) ON REQUEST

  • PER HR STAND BY PER FLT HR $20


  • TEST PILOT SERVICES $40

  • SPECIAL R&D SERVICES ON REQUEST

  • EXTENDED SKY FUEL SYSTEMS ON REQUEST


  • ORDERS WILL BE PAID IN ADVANCE, OR IN 30% INSTALLMENTS.

  • ITEMS WILL NOT BE SHIPPED UNTIL ALL PARTS ARE PAID IN FULL.

  • (DUE TO THE HIGH COST OF PARTS I WON’T RISK SERVICE TO OTHERS FOR ONE BOZOS RUBBER CHECK)

  • NOTE: PRICES ARE NOT ETCHED IN STONE – QUALITY IS.

  • CONVERSION FOR EXEC 90 REQUIRE SPRAG CLUTCH TO BE SENT IN FOR MODIFICATION, LABOR/MATERIAL EXTRA, GEARBOX, CLUTCH, ENGINE SENT AS A UNIT.

  • * REDUCES COSTS & HEADACHES
